Kurtaran KGS

SERVOSAN ® Kurtaran KGS series are intelligent devices designed to return the elevator cabin to the upper or lower floor and open the door in the event of a main power failure.

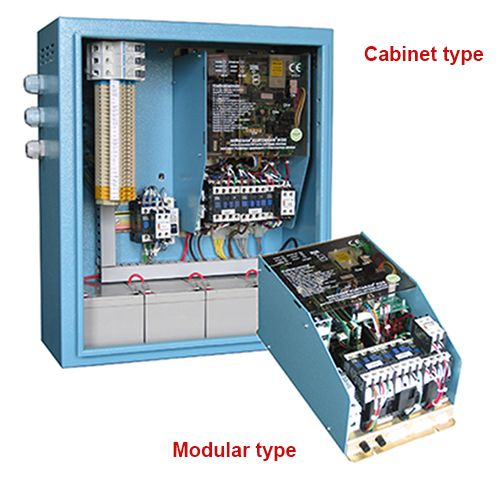

heir moduler structure, minimum dimensions and ready to plug-in connectors make the installation straightforward. They can be used for the rope type elevators with three phase asynchronous motors. Wall cabinet type models are also available.

  • Fulfills Lift Directive 95/16/EC, EN81-1 & EMC Directive 89/336/EEC
  • Design & Production meets ISO 9001:2008 standarts
  • Placed within the main control panel
  • Full compatibility with all control panels including VVF
  • Modular structure, connection over connectors
  • Minimum dimensions

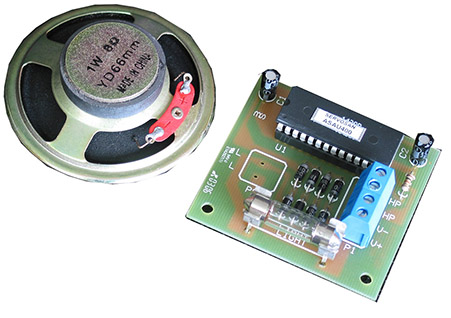

  • Announcement unit and digital display
  • Optimum battery charging

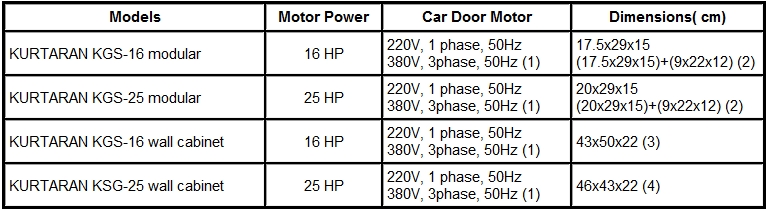

  • 16 HP, 25 HP and 30 HP models

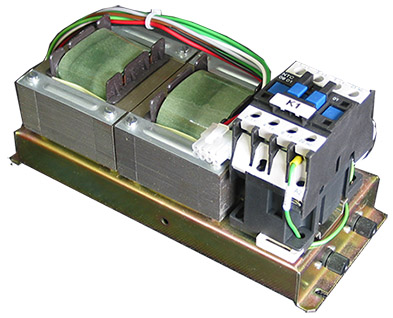

(1) An additional 3 phase transformer unit is used.
(2) Dimensions of the transformer unit.
(3) Batteries are in the panel.
(4) Batteries are not in the panel.

  • Plase specify the Brake and CAM voltage of your system. If not specified, they are supplied as 180V DC.
  • Plase specify the Car Door  Motor voltage of your system. If not specified, they are supplied as 220V, 1 phase, 50 Hz.
  • A special model for phase-phase 220V 60 Hz and phase-phase 380V 60 Hz. is availabe on request.

KGS USER MANUAL REV2. DOWNLOAD GUIDE

WALL CABINET KGS USER MANUAL DOWNLOAD GUIDE
