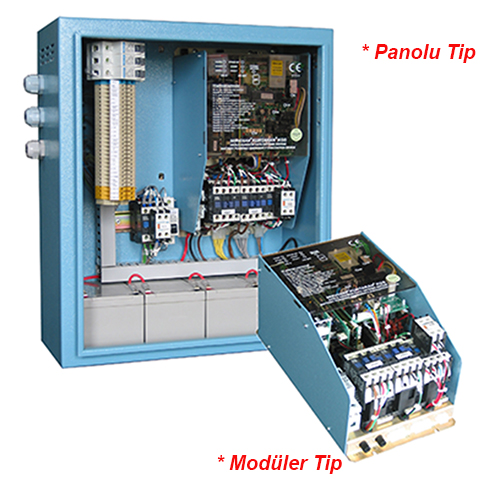

Their moduler structure, minimum dimensions and ready to plug-in connectors make the installation straightforward. They can be used for the rope type elevators with three phase asynchronous motors. Wall cabinet type models are also available.
- Fulfills Lift Directive 95/16/EC, EN81-1 & EMC Directive 89/336/EEC
- Design & Production meets ISO 9001:2008 standarts
- Placed within the main control panel
- Full compatibility with all control panels including VVF
- Modular structure, connection over connectors
- Minimum dimensions
- Announcement unit and digital display
- Optimum battery charging
- 16 HP, 25 HP and 30 HP models
| Models | Motor Power | Car Door Motor | Dimensions( cm) |
|---|---|---|---|
| KURTARAN KGS-16 modular | 220V, 1 phase, 50Hz 380V, 3phase, 50Hz (1) |
17.5x29x15 (17.5x29x15)+(9x22x12) (2) |
|
| KURTARAN KGS-25 modular | 220V, 1 phase, 50Hz 380V, 3phase, 50Hz (1) |
20x29x15 (20x29x15)+(9x22x12) (2) |
|
| KURTARAN KGS-16 wall cabinet | 220V, 1 phase, 50Hz 380V, 3phase, 50Hz (1) |
43x50x22 (3) | |
| KURTARAN KSG-25 wall cabinet | 220V, 1 phase, 50Hz 380V, 3phase, 50Hz (1) |
46x43x22 (4) |
(1) An additional 3 phase transformer unit is used.
(2) Dimensions of the transformer unit.
(3) Batteries are in the panel.
(4) Batteries are not in the panel.
- Plase specify the Brake and CAM voltage of your system. If not specified, they are supplied as 180V DC.
- Plase specify the Car Door Motor voltage of your system. If not specified, they are supplied as 220V, 1 phase, 50 Hz.
- A special model for phase-phase 220V 60 Hz and phase-phase 380V 60 Hz. is availabe on request.
KGS USER MANUAL REV2. DOWNLOAD GUIDE
WALL CABINET KGS USER MANUAL DOWNLOAD GUIDE
